    Sitrex provides farmers, contractors and dealers with a unique and complete range of high quality products for haymaking, turf and lawn care and spreading.

    Sitrex Hay Rakes

    Explorer MX Trailed Finger Wheel V Rakes

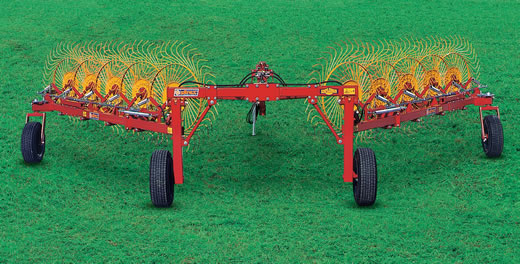

    ExplorerMX trailed V Pull Rake

    Photograph for illustration purposes - standard specifications may not match those shown.

    SITREX MX (EXPLORER) SERIES FEATURES
    • Operating speeds of up to 22.5km/h obtainable.
    • Rake wheels mounted on tapered roller bearings.
    • Centre Kicker Wheels fitted as standard.
    • Single / independent rake wheels protected by adjustable spring shock absorbers.
    • Dual hydraulic system controls the raising & lowering of the wheels as well as the opening / closing of the rake.
    • One hydraulic connection to tractor spool valve required.

    SPECIFICATIONS

    		 MX/8 MX/10 MX/12
    Min. Power Required (hp) 30 30 30
    Finger Wheels 8 10 12
    Operating Speed (km/h) 22.5 22.5 22.5
    Weight (kg) 1220 1370 1520
    Transport Width (m) 2.5 2.5 2.5
    Working Width (m) 5.3 62 7.1
    Rake Wheel Diameter (m) 1.4 1.4 1.4
    No. of Fingers Per Rake Wheel 40 40 40
    Finger (Tyne) Diameter (mm) 7 7 7
    Tyre Size 205-65/15 205-65/15 205-65/15

    OPTIONS
    220.264 MX RATCHET LINK KIT

    BROCHURE

    Click this link to download a brochure Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Sitrex)
