Sitrex Hay Rakes

Magnum MKE Trailed Finger Wheel V Rakes Rakes


Magnum MK trailed V Pull Rake

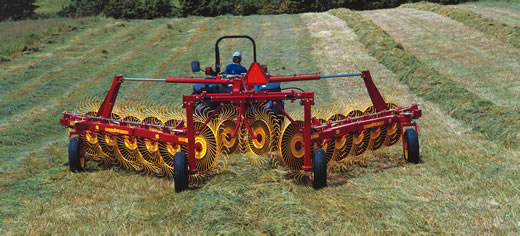

Photograph for illustration purposes - standard specifications may not match those shown.

SITREX MK (MAGNUM) SERIES FEATURES

  • Operating speeds of up to 22.5km/h obtainable.
  • Rake wheels mounted on tapered roller bearings.
  • Centre Kicker Wheels fitted as standard.
  • Single / independent rake wheels protected by adjustable spring shock absorbers.
  • One hydraulic connection to tractor spool valve required.
  • Easy, mechanical adjustment of windrow from 0.9m to 1.8m.

SPECIFICATIONS

MK/10 MK/12 MK/14 MK/16 MK/18 MK/20
MIN. Power Required (hp) 30 30 40 40 55 55
Finger Wheels 10 12 14 16 18 20
Operating Speed (km/h) 225 22.5 22.5 22.5 22.5 22.5
Weight (kg) 1475 1600 2285 2378 3056 3158
Transport Width (m) 2.5 2.5 2.5 2.5 2.5 2.5
Working Width (m) 6.5 7.6 8.7 9.4 10.2 11
Rake Wheel Diameter (m) 1.4 1.4 1.4 1.4 1.4 1.4
No. of Fingers Per Rake Wheel 40 40 40 40 40 40
Finger (Tyne) Diameter (mm) 7 7 7 7 7 7
Tyre Size 205-75/15 205-75/15 205-75/15 205-75/15 205-75/15 205-75/15

OPTIONS

220.089 Tandem wheel kit
220.171 Rear Hyd. opening kit MK 10-12
220.172 Rear Hyd. opening kit MK14-16
220.173 Rear Hyd. opening kit MK 18-20
220.405 Conversion kit MK14 to MK16
220.440 Conversion kit MK18 to MK20

BROCHURE

Click this link to download a brochure Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Sitrex)
Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
